Anti static PTFE Coated Glass Fabrics, eliminates static electricity during operation
Anti static PTFE Coated Glass Fabrics is specially formulated by adding carbon for conductive and Anti static property. Anti static PTFE fabric series combined with the easy release property, by coating high quality PTFE on the basic fiberglass.
The OHMS(surface resistant) per square meter of Anti static PTFE coated fabrics can be 10^7 to 10^5, which will show excellent conductive and non stick property.

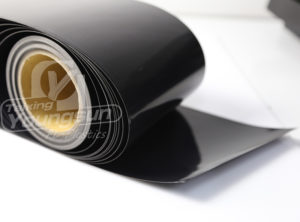

YS9008BJ is 0.08mm thick, black color, standard width is 1m or 1.25m(1.5m can be offered, but price is different).
Property of Anti Static Teflon Coated Fiberglass
Anti static PTFE Coated Fiberglass Fabrics has an anti static (conductive) and Non stick properties.

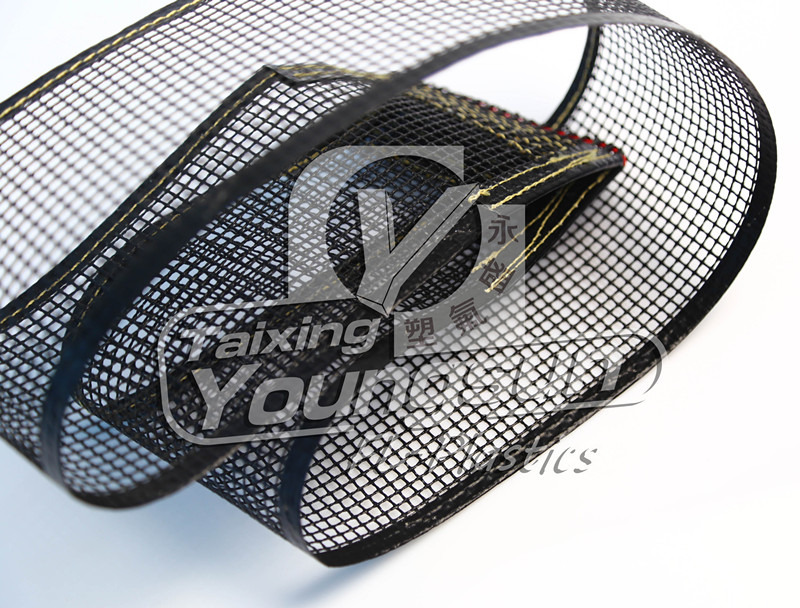

The color of Anti static PTFE coated Glass Fabrics is black and available in all kinds of PTFE fabrics, like PTFE coated glass fabrics, Self adhesive PTFE Fabrics, PTFE open mesh fabrics.
The property of Anti static Teflon coated fiberglass fabric is almost same as PTFE coated fabric premium series.
★ Non-stick surface and easy release
★ Working continuous from -70°C – +260°C
★ Chemical resistant and environmental resistant
★ High tensile strength and dimensional stability
★ Reusable and has long lifetime
★ Abrasion and UV resistant
★ Anti static (conductive)
Applications of Anti static PTFE coated glass fabrics
Anti static PTFE Coated Glass Fabrics is widely used in conveyor belts, release sheets, wire and cable production where static can be made.

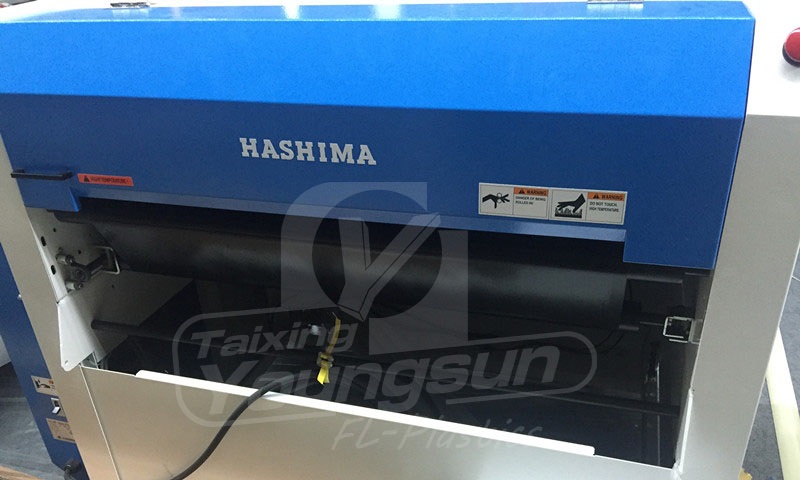

Applications such as Automotive, Electronics like electrical insulation, LCD/FPC/PCB manufacturing, Energy like Solar cells panel production and module lamination, Packaging like heat sealing, release sheet for heat press machines, Textile like seamless fusing belts for fusing machine, release sheet in shoes industry, textile lamination and so on.
The Specification of Anti Static PTFE Coated Fabrics
|PTFE GLASS FABRIC||ANTI STATIC SERIES||PTFE(TEFLON)|
|Standard width |
Please ask for other widths
|1000, 1250 mm||39.5, 49.3 inches|
|Thickness||0.08 mm||0.0031 inches|
|Coated weight||155 g/m²||4.57 oz/yd²|
|PTFE content||68 %||68 %|
|Surface resistance||10^7 to 10^5 OHMS/m²||10^7 to 10^5 OHMS/m²|
|Tensile strength||102 N/cm Warp||58.3 lbs/inches Warp|
|98 N/cm Fill||56 lbs/inches Fill|
|Temperature resistance||-73 to +260 °C||-100 to +500 °F|
Click here to download the spec of YS9008BJ-ESONE
Click here to access Anti static Teflon Adhesive Tape
