PTFE impregnated Fabrics, specially for Thermal insulation jackets

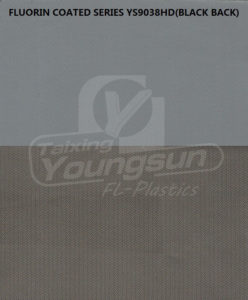

PTFE impregnated Fabrics, coated with one side Fluorin(PTFE), has high tensile strength, is UV resistant and Flame resistant, the model number is YS9038HD. The color can be Gray, white, yellow, black, red or other colors.
It is the heat resistant & Corrosion resistant solution for Insulation Jacket!
Applications of Fluorin coated series include wrapping insulation for pumps, filters, exchange, pipeline, valves, freeze protection and so on, it’s wraped outside the insulation blanket, as this fabric is anti-aging, anti-chemical and anti-environment.

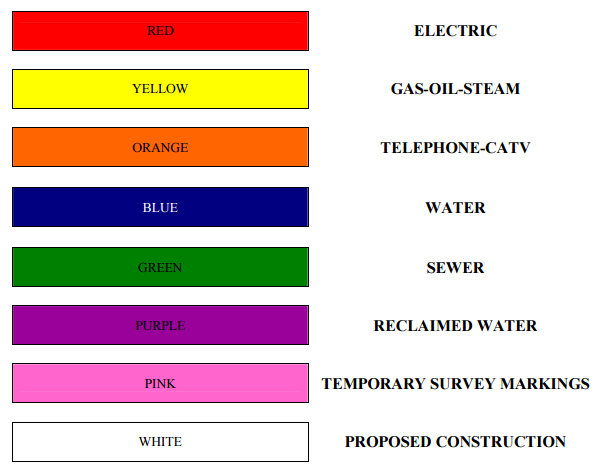

Different color is used for different application, such as steam pipeline, oil pipeline or gas pipeline.

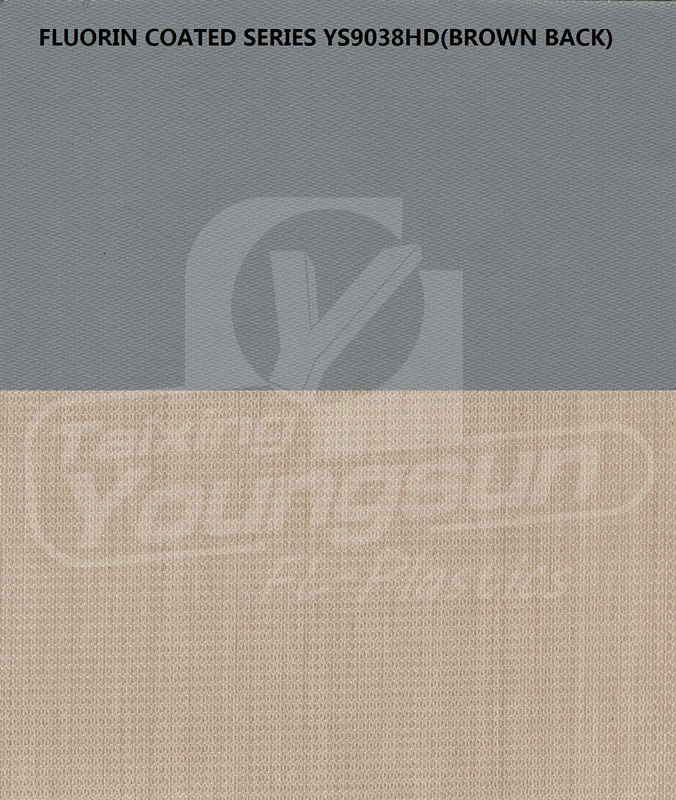

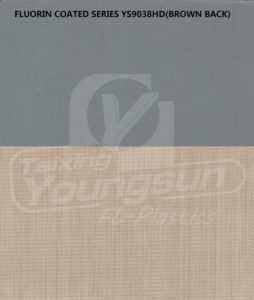

One side PTFE impregnated Fabric
This YS9038HD fiberglass fabric is impregnated with one side high quality PTFE(Teflon).
The high temperature resistant, flame retardant, Non-stick PTFE(Teflon) provides improved resistance to abrasion and corrosion, flexing and tear. And fiberglass ensure the high tensile strength of this product.
This product is used for high temperature (600°F) removable insulation jackets for valves, filter, exchanger, pump, piping, flanges and fittings.
Advantages of one side PTFE coated fabric
– Flame Resistant
– Environment Resistant
– Chemical Resistant
– UV Resistant
– Non-stick surface, good self-cleaning
Spec of One Side PTFE impregnated Fabrics YS9038HD
|Basic Fabric||Satin weaved fiberglass||Satin weaved fiberglass|
|Coating||One side||One side|
Please ask for other widths
|1500 mm||78.8 inches|
|Coated Weight||560 g/m²||16.5 oz/yd²|
|Thickness||0.38 mm||0.016 inches|
|Tensile strength||Warp 3572 N/5cm||410 lbs/inches|
|Fill 2679 N/5cm||350 lbs/inches|
|Mullen Burst||455 N/cm²||650 psi|
|Flame Resistant||Char Length 2.54 cm max||Char Length 1 inch max|
|Afterglow 1 second max||Afterglow 1 second max|
|Flame Out 1 second max||Flame Out 1 second max|
|Temperature resistance||-73 to +315 °C||-100 to +600 °F|
|UV Resistance||1000 hours; no change in tensile||1000 hours; no change in tensile|
Click here to download the spec of YS9038HD-ESONE
How to make Insulation jacket by One side PTFE impregnated fabric
Operating at 600°F and up
Inside Jacket: Flat Stainless Steel Mesh

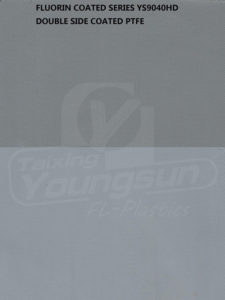

Outside Jacket: 16.5 oz One side PTFE Impregnated Fabric, or 18 oz Both side PTFE impregnated Fabric.
Liner: 18oz Silica Fabric
Liner: Crimped .011 Stainless Steel Mesh
Insulation: E-Glass Fiberglass Fabric
Fastening: 1″ Straps and Stainless Steel D-Rings
Fastening: 3/16″ Braided Kevlar Drawstrings
Fastening: 12ga Stainless Steel Lace Hooks and Quilt Pins
Thread: Kevlar Thread
Application of PTFE coated fiberglass fabric

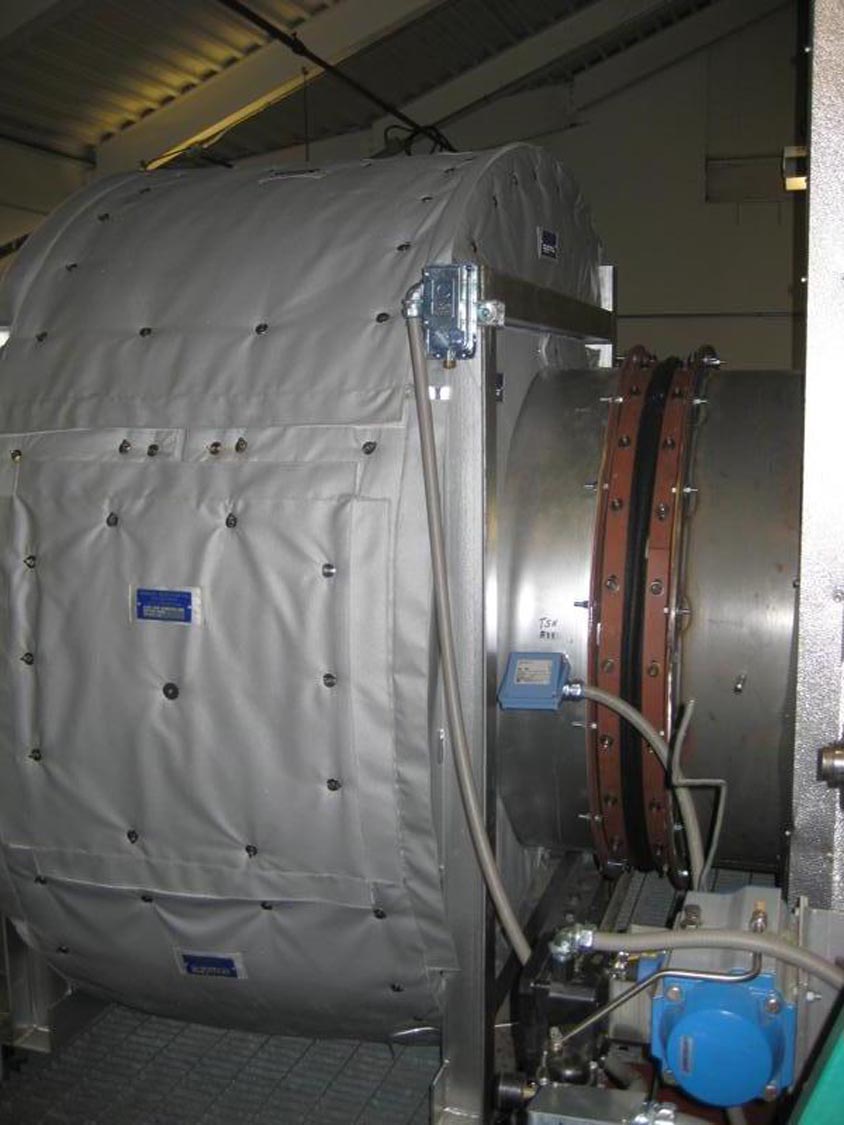

Removable Insulation Jackets are designed for Pumps, filters, exchange, pipeline, valves, freeze protection and so on.
And different color is for different application, like Yellow insulation jacket is for Gas, Oil and Steam value, pumps and so on.

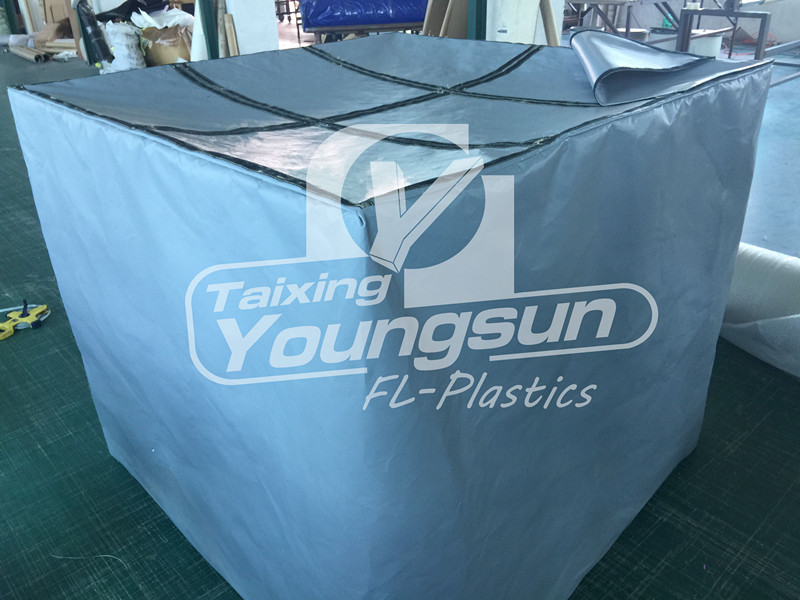

PTFE Impregnated Fabrics could also be used for making Antiseptic Insulation Tent, which could be used to store chemicals(especially for flammable and combustible chemicals), or easy-corrosive, hazardous article.
