PTFE Coated Fiberglass Fabric Premium YS9008AJ

PTFE Coated Fiberglass Fabric Premium YS9008AJ

PTFE Coated Fiberglass Fabric, high PTFE content Premium Series

PTFE Coated Fiberglass Fabric is also called as PTFE coated fiberglass fabrics, which is made with woven fiberglass fabric, and coated with high performance PTFE resin.

PTFE coating ensures this the easy release surface, high chemical resistant, and heat resistant (continuous working under 260 degrees, maximum 327 degrees), which result in a wide application in many different fields.



PTFE Coated Fiberglass Fabric also has very good abrasion resistance and strong tensile strength, it can be used as laminate-release sheets for curing & laminating process, belting for food, electrical insulation and industrial processing.

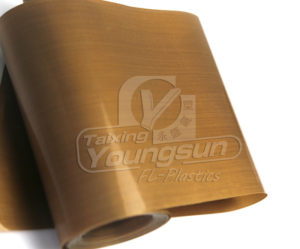

PTFE Coated Fiberglass Fabric

PTFE Coated Fiberglass Fabric



Properties of PTFE Coated Fiberglass Fabric



  Superior non stick surface and low friction surface

  Continuous working from -70°C – +260°C,

maximum working temperature is +327°C(short term).

  Chemical resistant and dimensional stable

  High tensile strength and reusable



Technical Data of Teflon Fiberglass



ProductProduct CategoryCoating
PTFE GLASS FABRICPREMIUM SERIESPTFE(TEFLON)



PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1250 mm39.5, 49.3 inches
Thickness0.08 mm0.0031 inches
Coated weight155 g/m² 4.57 oz/yd²
PTFE content68 %68 %
Tensile strength104 N/cm Warp59.5 lbs/inches Warp
98 N/cm Fill56 lbs/inches Fill
Temperature resistance-73 to +260 °C-100 to +500 °F



Click here to download Spec of YS9008BJ-ESONE YS9008AJ-ESONE



Note:
Weight Tolerance g/m² = ±5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be construed in any manner as warranties expressed.



Application of 0.08mm Teflon fiberglass fabric



Youngsun offering excellent smooth and high gloss surface coating, which has also super abrasion resistance and high tensile strength.
Applications of PTFE coated fiberglass include release sheet for heat press machines, belting for food industry, Non stick baking liner or oven liner, electrical insulation and industrial processing.

0.08mm PTFE Coated Fiberglass Fabric is FDA & LFGB certificated, can be used in direct contact with food.
The product does not contain banned substances as described in RoHS directive and will not affect RoHS
compliance.



Teflon coated Fiberglass Fabric

Teflon coated Fiberglass Fabric



Click here to access PTFE coated fabric Premium Series

Click here to access PTFE coated fabric Industrial Series
