Teflon coated fiberglass YS9015AJ

Teflon coated fiberglass YS9015AJ

Teflon coated fiberglass, abrasion resistant and high tensile strength

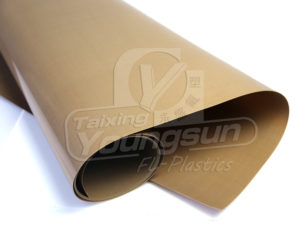

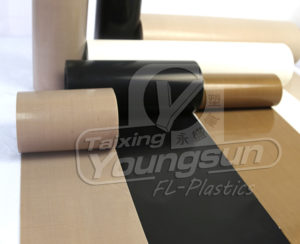

Teflon coated fiberglass is made from high quality glass fabrics combined with specially formulated PTFE content.

0.15mm Teflon coated fabric belongs to the PTFE fabric Premium Series, which is made of 2116 E-glass and coated with high quality PTFE, the model number is YS9015AJ.
Teflon coated fiberglass is also abrasion resistant and has high tensile strength, which is usded as laminate-release sheets for curing & laminating process, belting for food, electrical insulation and industrial processing.
YS9015AJ is also being used to make YS7015AJ PTFE coated Adhesive Tapes.
ptfe coated glass fiber fabric

PTFE coated glass fiber fabric

Properties of Teflon coated fiberglass


★  Easy to release, super Non stick
★  Continuous working from -70°C to +260°C
★  Low friction and very smooth
★  Food grade and can touch food directly
★  High chemical resistant
★  Strong tensile strength and dimensional stability
★  UV resistant, anti-aging and anti-environment
★  High dielectric strength
Teflon coated fiberglass

Teflon coated fiberglass

Applications of PTFE Coated Glass Fabrics


★  For molding: mold-releasing sheets.
★  For printing: drying screen-printing machines.
★  For apparels: adhesive interlining belts.
★  For food processing: heat sealers, frozen food transportation, defrosting belt and baking belt.
★  For packing: shrink film packaging and side band sealing.
★  For office equipment: paper conveyor belt of copiers.
0.15mm Teflon glass fabric can be made into Anti-static fabric with or without adhesive.
And YS9015AJ is also be used for making 2 or more layers PTFE laminating belts.

Main Specifications of PTFE coated fiberglass


ProductProduct CategoryCoating
Standard width
Please ask for other widths
1000 mm39.5 inches
Thickness0.15 mm0.006 inches
Coated weight315 g/m² 9.29 oz/yd²
PTFE content66 %66 %
Tensile strength250 N/cm Warp143 lbs/inches Warp
210 N/cm Fill120 lbs/inches Fill
Temperature resistance-73 to +260 °C-100 to +500 °F


Click here to download the spec of YS9015AJ-ESONE

Teflon coated Fabric Industrial

Teflon coated Fabric Premium
